Distributed Databases

In this article we cover some commmon distributed databases. Because the field of distributed databases is large and varied, we can only cover a few FOSS variants.

Master-Slave and Master-Master Relational Databases

Master-slave and master-master architectures achieve data consistency and distribution by either replicating data among servers and/or sharding the data between them. Master-slave systems send writes to the master nodes, while allowing slave nodes to handle reads through a load balancer.

In general, traditional distributed databases often have:

  • A master or coordinator node, or multiple masters

  • A Distributed File System (DFS) that shares cluster-wide configuration

  • Some sort of load-balancer

  • Worker nodes, sometimes all of them

  • Standby nodes that can take over for failed master or worker

digraph G { bgcolor=wheat; graph [splines=curved; fontsize=14; fontname="Comic Sans Bold"; compound=true; ranksep="1.0"]; node [shape=record; style="rounded,filled"; fontsize=12; fontname="times-bold"; height="0.0"; ]; edge [dir=both;]; rankdir=TB; nodesep=".6"; client [fillcolor=bisque; label=Client]; lb [label="Load\nBalancer"; fillcolor=lightblue; ]; client:e -> lb:w [constraint=true]; {rank=same ; client lb; } subgraph cluster_0 { label="Cluster"; labeljust=l; style=filled; fillcolor=lightcyan; node [shape=box3d; height=.5; width=1; fillcolor=goldenrod; ]; a [label="Master\nnode"; ]; b [label="Worker\nnode";]; c [label="Standby\n+Master\n+Worker"; ]; {rank=same; a b c;} a -> b -> c; lb -> a; lb -> b; lb -> c; subgraph cluster_dfs { label="Distributed File System (DFS)"; fillcolor=lightgreen; node [ fillcolor=lime; shape=ellipse; ] dfs1 dfs2 dfs3; {rank=same; dfs3 dfs2 dfs1; dfs1 -> dfs2 -> dfs3; } } a -> dfs1 [ltail=cluster_1; lhead=cluster_dfs;]; b -> dfs2 [ltail=cluster_2; lhead=cluster_dfs;]; c -> dfs3 [ltail=cluster_3; lhead=cluster_dfs;]; } }

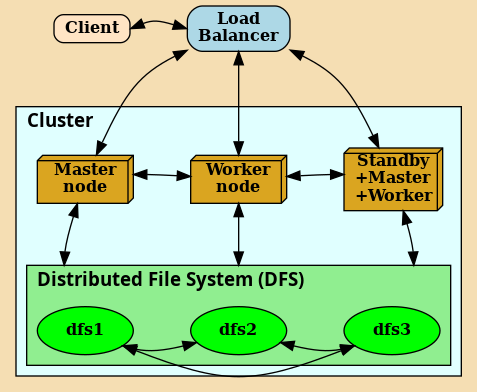

Idealization of a Distributed Database

Some examples:

Non Relational Databases

Key-Value Stores

  • Redis: Supports clustering with multiple nodes that shard and replicate data for high-availablity and speed.

  • ValKey (https://valkey.io/) and Redict (https://redict.io/): Two forks of Redis that has similar capabilities.

  • Etcd (https://etcd.io/): A key-value store used to synchronize cluster nodes

  • Apache Ignite (https://ignite.apache.org/): An in-memory distributed DB with peer-to-peer ability, designed for High-performance computing workloads.

Documentation Databases

  • MongoDB (https://mongodb.com): Sharded cluster architecture for horizontal scalability.

  • FerretDB (https://ferretdb.com): Inherits PostgreSQL’s distribution capabilities, compatible with MongoDB drivers.

  • Apache CouchDB (https://couchdb.apache.org): Apache CouchDB: Multi-master, peer-to-peer distributed database with bi-directional replication.

Graph Databases

A graph database stores data as nodes and edges, like a family tree structure. It can be much faster in some situations like family trees, protein modeling, and biological pathways.

Some examples of graph databases are:
